Hard Capsule Inspection Machine

Type of Defects Detected:

Different-color capsules, broken capsules, black spots, stains, different-shape capsules, concave top, double cap, fracture, bad printing, hair, no printing, long body, short body, long cap, short cap, long sac, short sac, capsule not round, capsule split, wrong cap, deflated shell, empty capsule, etc.

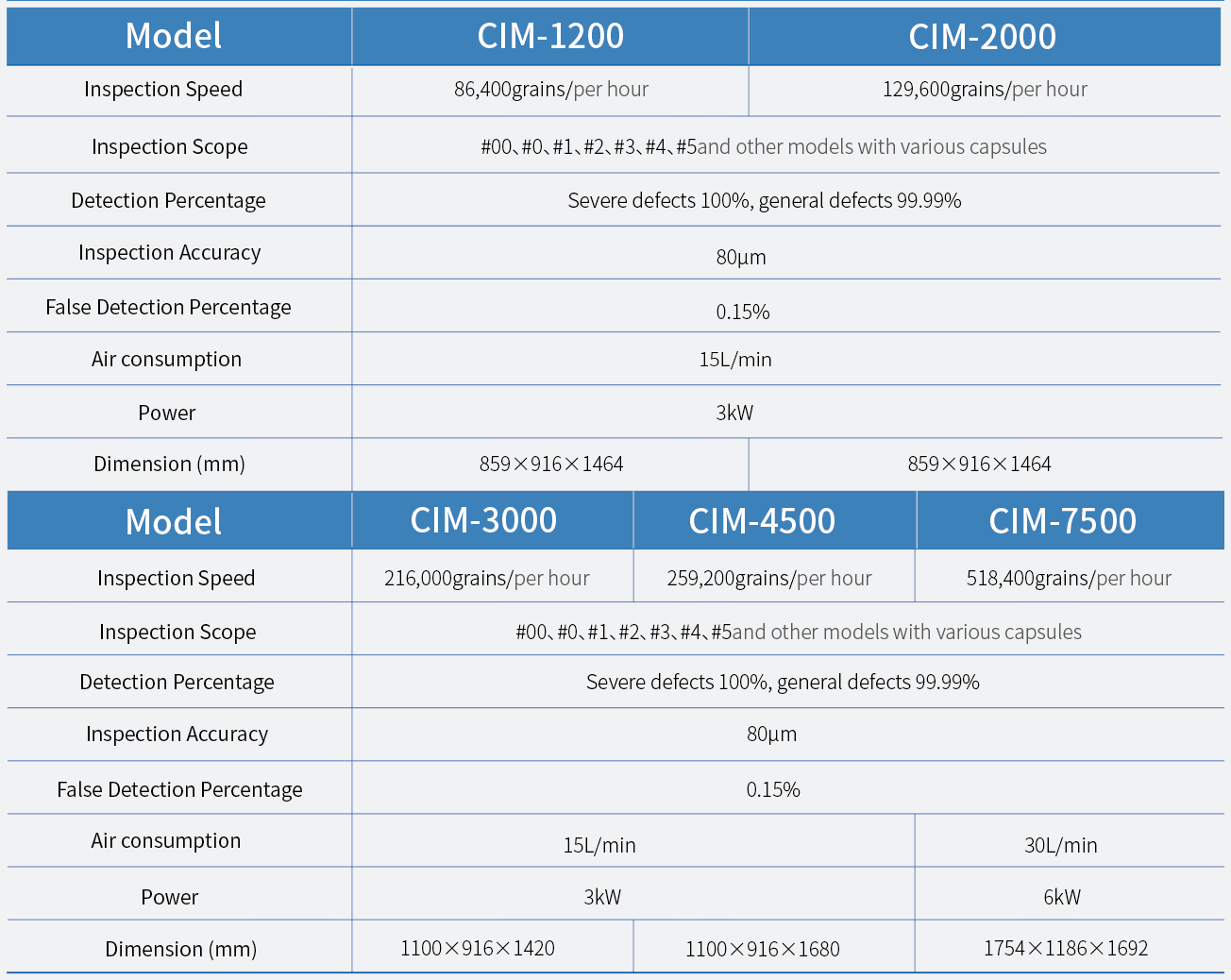

Technical Parameters:

Product Features:

• 360-degree capsule appearance defect detection

The inspaection machine adopts roller rotation mechanism to rotate each capsule 360 degrees, along with highly reflective coating mirrors, thus a full view of the capsule is achieved without any blind spots.

• Full series coverage of pharmaceutical production capacity

Multiple models can fit for pharmaceutical companies' capsule production speed. The maximum inspection speed can reach 518,400 grains/per hour.

• Empty capsule inspection

The machine is equipped with a backlight to accurately detect the presence of empty capsules and automatically reject them.
